Liquid Filter Bags

DIASTAR FILTER CLOTH

Kelly filter bag

Filter press Cloth bag

We offer a complete line of dust collector bags to fit most manufactures' filter bag housings. Our filter bags are carefully fabricated and sized to ensure ease of installation and change-out. These filter bags are designed to be mounted and gasketed firmly into place with a snap band, corded cuff

GAUDFRIN DIASTAR FILTER CLOTH FOR ALUMINATE LIQUOR CLARIFICATION

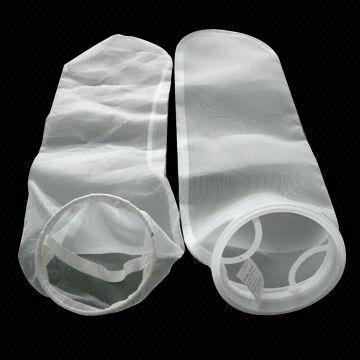

Mesh Filter Bag Material Nylon (polyamide) or polyester monofilament / multifilament mesh Process Sewn / welded Micron Rating 10~ 800 Mouth Type Steel ring / plastic collar / draw string Size Standard sizes and custom size available

For more and more strict demand on filtration precision, we developed welding filter bag. The welding filter bag is made of high-grade polyester and PP felt .The surface is singed to avoid fiber falling which will cause pollution to the filtrate. The felt is Needle Punched which could provide three-dimensional filtration.

Press cloths cover a wide range of filter press designs from single cloth, drape over cloths, duplex or barrel-neck cloths and caulk-in cloths. Although the designs are different, th e basic filtration function is the same whether it is an old plate and frame or a new recessed chamber, caulk-in automatic press with diaphragm squeeze.

Rotary disc filters use sector or disc bags, wedged shaped bags designed to fit w hich makes up the rotating disc. Disc filters are continuous process, vacuum filters, frequently found in the metal mining, metal ore beneficiation and coal cleaning industries.Disc filters rotate in a vat of slurry.

Pressure leaf filters are batch filters using a round or rectangular wire frame (leaf) dressed with sewn filter cloths. The individual leaves are mounted on a manifold which is inside a vessel. Slurries or solutions to be filtered are pumped into the vessel and each leaf and filter cloth separ ate the solids from the liquids.

Rotary Drum Filters (RDF) operate under a high vacuum, rotating a dru m into a vat of slurry, dewatering and drying as the drum rotates out of solution and over to the cake discharge side. The filter media is caulked onto the drum and stays in the same place.

Liquid processing equipment, unlike dust collectors, comes in many shapes, sizes, d esigns and methods of separating solids from a liquid.The major types of equipment, their design and their filter cloths are discussed in 5 major sections:Filter Presses Disc Filters Pressure Leaf Filters Belt Filters Drum Filters in addition there are tray filters

Nylon Monofilament Filter Bag Material:Nylon monofilament filter material Usage:liquid filter Structure:filter bag Filtering precision:1-200 micron

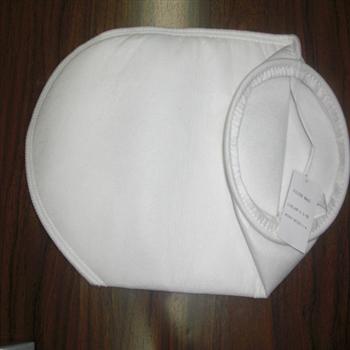

Filter media: Polyester and polypropylene non-woven filter felt Ring Material: PE & PP ring, snap ring Standard size: 1- 7" Dia x 16" Length 2- 7" Dia x 32" Length 3-4" Dia x 8.25" Length 4- 4" Dia x 14" Length Retention rate: 1, 3, 5, 10, 15, 25, 50, 100, 150, 200
