Filter Belt for Filtration

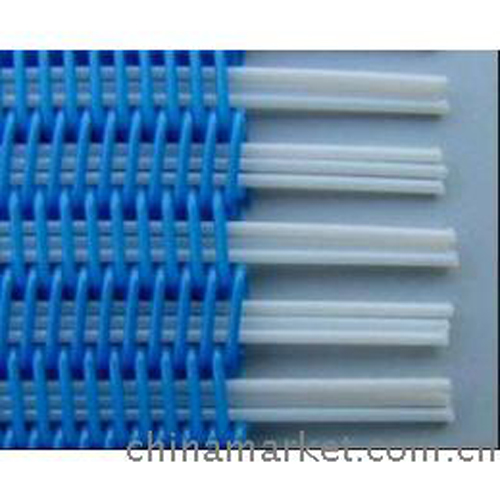

Product Item:Dewatering Belt (Polyester dehydrates the net product) Product Introduction:With fine and even meshes, high breaking strength,it is widely used in printing, mining sellection,and food industry, etc

Name Code Diameter(mm) Density (yarn/cm) Permeability (m3 /m2h) Mesh (inch) Usage Warp Weft Warp Weft Monofilament dry mesh 1.5 layer GW22503 0.50 0.50 23-24 11-12 8000 60 Drying for paper making 2 layers GW20504 0.50 0.50 21-22 11-12 13000 55 GW20604 0.725 0.725 200.5 60.5 3965 9000 GW22504 0.50 0.50 23-24 11-

polyester belt, polyester mesh, fitler belt, HBL, DLW fabric, double layer weaving belt

Specifications Polyester Pulping belt 1.used in washing and cleaning equipments 2.high efficiency 3.good quality 4.competitive price

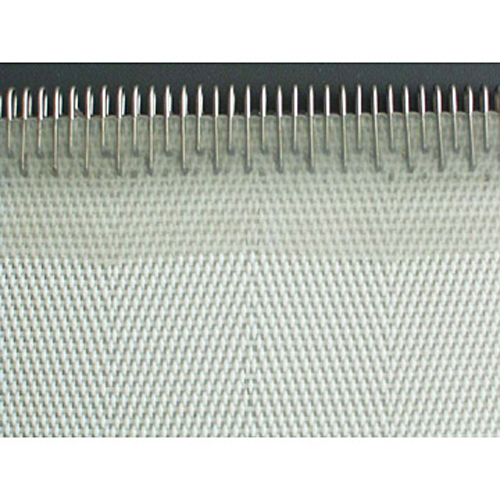

Product Item:Drying Belt Product Introduction:The belt are mainly used for sewage, solid-liquid separation of bio-chemical project, metallurgy, petroleum and chemical, papermaking industries, etc. The material:is Polyester, Polyamide66 and Polypropylene monofilament or multifilament yarn.

PP filter cloth,which made of polypropylene fiber (PP), can be divided into PP staple filter cloth, PP long thread filter cloth, and PP monofilament filter cloth. These products possess the properties of acid-resistance, alkali-resistance, small specific gravity, the melting point 142-146degree, and normal working temperature maximum 90 degree.

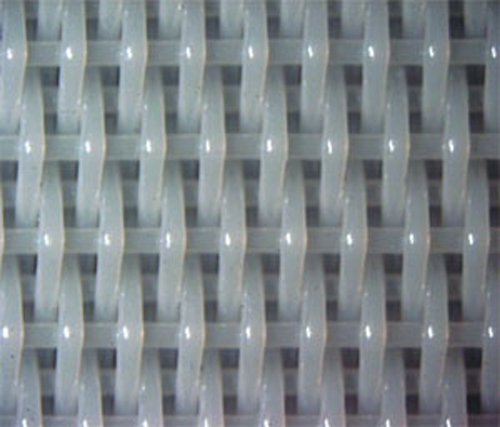

Double layer monofilament filter cloth is a new type of filter cloth weaved by monofilament,which has good air and water permeability.They have the good ability to prevent the granules from blocking in the fabrics and the filter cakes can be peeled off easily, therefore, they can be used time after time. P008MD\P120D are mainly applied to belt filt
